P/N JM430
Fitur/Keterangan:

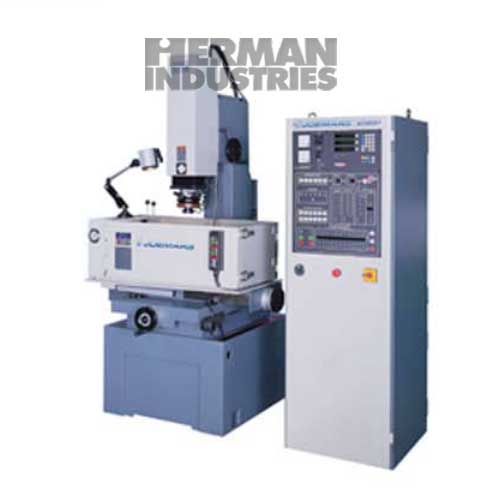

Joemars Super Drill EDM JM430 Specifications:
| ITEM | UNIT | JM430+NZ50+D430 |
|---|---|---|
| Work table size | mm | 650 x 400 |
| X travel | mm | 400 |
| Y travel | mm | 300 |
| Z travel | mm | 200 |
| W travel | mm | 200 |
| Ram platen to work table | mm | 230-630 |
| Max electrode weight | kgs | 75 |
| Max workplace weight | kgs | 900 |
| Work tank (W X D X H) | mm | 1060 x 600 x 340 |
| Weight of machine unit | kgs | 1400 |
| Machine Outside Dimension (W x D x H) | mm | 1455 x 1680 x 2155 |
| Max Machining Current | A | 50 |
| Total Power Input | KVA | 4.5 |
| Max Metal Removal Rate | mm3/min | 390 |
| Electrode Wear Ratio | % | 0.25 |
| Best Surface Roughness | 0.20 | |
| Net Weight | kgs | 180 |
| Outside Dimensions (W x D x H) | mm | 586 x 790 x 1735 |
| Dielectric tank capacity | L | 340 |
| Dielectric tank pump | HP | 0.5 HP x 1 |
| Dielectric tank net weight | kgs | 100 |
| Dielectric tank filter method | Paper filter | |
| Dielectric tank outside dimensions (W x D x H) | mm | 850 x 1000 x 1100 |
Spesifikasi:
JM430 Features:
- The Joemars New Fuzzy Logic Control System Concept : Sensor that exceeds a skilled operator / Optimizes machining conditions ( Off time, sparking gap, Servo sens., Flushing hight, Working time )
- The Z NC Programmble for Auto Machining (From Rough To Fine Finishing) : Total of 50 programs, each program can do a single step, or a maximum of 10 steps machining ( option ) and each step includes 12 kinds of machining parameters. By using the JOEMARS Fuzzy Logic Control System, the operator can get a total of 9600 sets of machining parameters which can also be modified at any time during sparking without affecting the stored parameters.
