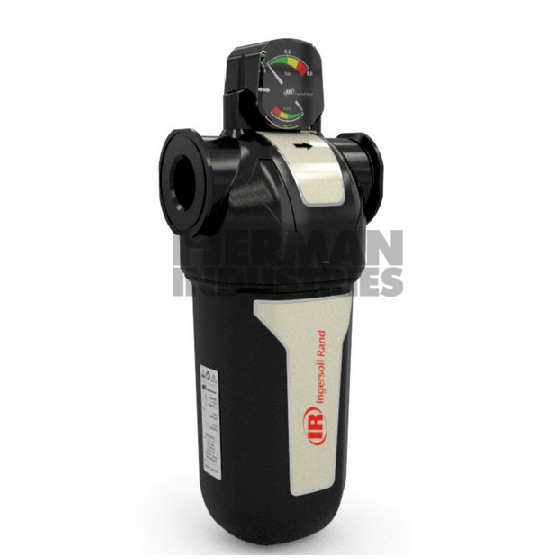

P/N IRFA14MG
Fitur/Keterangan:
Specifications Chart:
| Model |
Capacity 7 bar g m3/min |
Port Conn BPST |
Dimension (mm) |
Weight (kg) | Filter CPN | ||
| A | B | Unit |
Element |
||||
| FA30IG | 0.48 | 3/8" | 76 | 172 | 0.562 | 24356495 | 24356677 |
| FA40IG | 0.62 | 1/2" | 76 | 172 | 0.547 | 24231854 | 24241838 |
| FA75IG | 1.27 | 3/4" | 98 | 227 | 1.069 | 23241938 | 24241879 |
| FA110IG | 1.84 | 3/4" | 129 | 227 | 1.091 | 24232027 | 24241937 |
| FA150IG | 2.49 | 1" | 129 | 266 | 2.063 | 24232092 | 24242000 |
| FA190IG | 3.12 | 1" | 129 | 266 | 2.063 | 24232175 | 24242067 |
| FA230IG | 3.82 | 1" | 129 | 266 | 2.063 | 24232258 | 24242125 |
| FA400IG | 6.66 | 1 1/2" | 129 | 356 | 2.361 | 24232340 | 24242190 |
| FA490IG | 8.21 | 1 1/2" | 170 | 356 | 2.361 | 24232423 | 24242257 |
| FA600IG | 9.91 | 2" | 170 | 465 | 5.196 | 24232506 | 24242299 |
| FA800IG | 13.31 | 2" | 170 | 465 | 5.238 | 24232589 | 24242331 |
| FA1000IG | 16.99 | 2" | 205 | 465 | 5.257 | 24232662 | 24242372 |
| FA120IG | 20.11 | 3" | 205 | 547 | 9.307 | 24232746 | 24242414 |
| FA1560IG | 26.05 | 3" | 205 | 647 | 10.694 | 24232829 | 24242455 |
| FA1830IG | 30.59 | 3" | 205 | 647 | 10.694 | 24232902 | 24242497 |
| FA2300IG | 38.23 | 3" | 205 | 877 | 13.696 | 24232985 | 24242539 |
| FA2700IG | 45.31 | 3" | 205 | 877 | 13.696 | 24233066 | 24242570 |
Operating Limitations:
- Maximum operating pressure: 17.2 bar (g)
- Maximum operating temperature 80 °C
- Minimum operating temperature 1 °C
Spesifikasi:
Option parts:
| Model |
Ring Set CPN |
Differential Gauge (BPST) CPN |
Clamp Kit CPN |
Bracket Kit CPN |
| F30I | 24356701 | 24356750 | 24361917 | 24361966 |
| F40I | 24334930 | 24356750 | 24361917 | 24361966 |
| F75I-F11I | 24334955 | 24335044 | 24361925 | 24361974 |
| F150I-F230I | 24334963 | 24335044 | 24361933 | 24361982 |
| F400I-F490I | 24334971 | 24335044 | 24361933 | 24361982 |
| F600I-F1000I | 24334989 | 24335044 | 24361941 | 24361990 |
| F1200I | 24334997 | 24335044 | 24361958 | 24362006 |
| F1560I-F1830I | 24335002 | 24335044 | 24361958 | 24362006 |
| F2300I-F2700I | 24335010 | 24335044 | 24361958 | 24362006 |
Note:
- 24335028 AUTO DRAIN F Series
- 24335036 MANUAL DRAIN F Series
Product Descriptions:
- Air quality to ISO 8573.1:2010/Class 2 Solid particulate, Class 2 oil
- Particle removal down to 0.03 micron
- Including coalesced liquid, water and oil
- Maximum remaining oil aerosol content of 0.03 mg/m3 at 21 °C
- Compliance with PED 97/23EC and CE
- Standard filters include gauge and 1/4" M Automatic Drain
