P/N ZXTM40
Fitur/Keterangan:

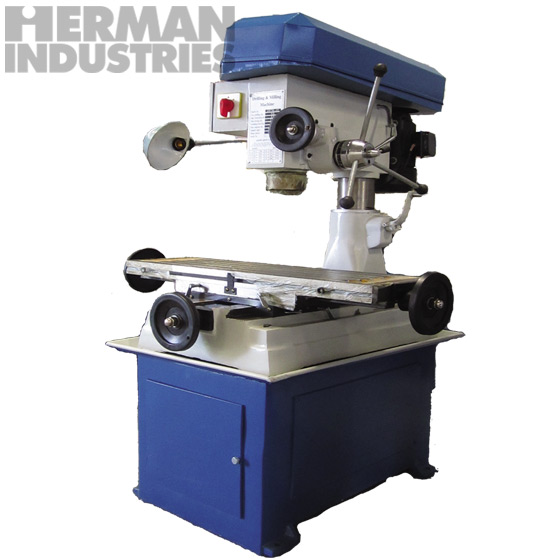

Houmann ZXTM40 Product Specifications:
| SPECIFICATIONS | UNIT |
| Max.drilling dia. | 40 mm |
| Max.horizontal milling dia. | 100 mm |
| Max.vertical milling dia. | 20 mm |
| Distance from spindle nose to table | 550 mm |
| Distance from spindle axis to column | 300 mm |
| Spindle travel | 120 mm |
| Spindle taper | MT4 |
| Spindle speeds range | 168-3168 rpm |
| Table size | 800 ×240 mm |
| Table travel | 400 ×250 mm |
| Main motor power | 1.5 kW |
| N.W./G.W. | 410/460 kg |
- CE, ISO9001:2008 Certified
- Veneer case packing
- OEM program
Spesifikasi:
ZXTM40 Special Features:
- Round column
- Low price
- Belt drive.
- Round column
- Hardened and ground table surface
- Lifting and lowering of headstock.
