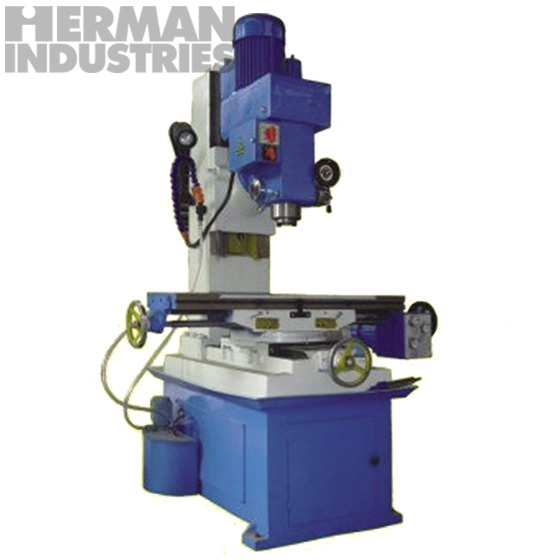

P/N ZX50C
Fitur/Keterangan:
ZX50C Technical Descriptions:
| SPECIFICATION | UNIT |
| Drilling Capacity | 50 mm |
| Vertical Drilling Big DIA | 25 mm |
| Max Boring DIA | 120 mm |
| Spindle Taper | M16 |
| Spindle Travel | 120 mm |
| Distance Spindle Exis to Work Table | 38-430 mm |
| Spindle Feeds | 115-1750 rpm |
| Table Travel | 400x320 mm |
| Size of Table | 900x240 mm |
| Motor Power | 0.85/1.5kW |
| Overall Dimension | 1100x970x1650mm |
| N.W/G.W | 500kg/600kg |
ISO9001:2008 Certified
Spesifikasi:
ZX50C Drilling Machine Main Features:
- Belt-Drive Milling Head
- Dovetail Table Guideways Withstand Larger Overturning Moment
- Work Table Surface and Guideways Hardened by Supersonic Frequency Quenching (Depth 2-4MM)
- Work Table and Guideways Made by HT200-250 High Strength Cast Iron
- Rotary Head
- Digital Readout (optional)
- Actuator (optional)
- CE ISO Certificated
- 18 Months Warranty
- Professional Design, Easy Operation
- Good helper for your machining and maintanance work in your workshops
