P/N RD1500
Fitur/Keterangan:

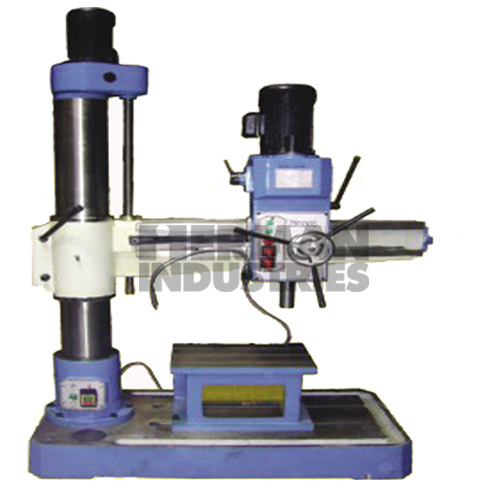

Houmann RD630 Radial Drilling
| SPECIFICATION | UNIT |
|---|---|
| Drilling Capacity (mm) | 32 |
| Distance FM Spindle to Column (mm) | 360-1000 |
| Axis to Column (mm) | 220-1050 |
| Spindle Taper | MT-4 |
| Spindle Travel (mm) | 120 |
| Spindle Speed Range (rpm) | 108-1000 |
| Spindle Speed Series | 75, 130, 240, 380, 660, 1220 |
| Spindle Feeds (mm/r) | 0.10, 0.16, 0.25 |
| Diameter of Outer Column (mm) | 200 |
| Worktable Dimension (mm) | 630 x 500 x 500 |
| Motor Power (kW) | 1.5/2.2 |
| Overall Dimension (mm) | 1500 x 705 x 2020 |
| Weight (kg) | 960 |
Spesifikasi:
Standard Accessories:
- Box shape worktable
- Taper sleeve
- Tool releasing Wrench
- Drift
- Eyelet bolts
