P/N ISO40
Fitur/Keterangan:

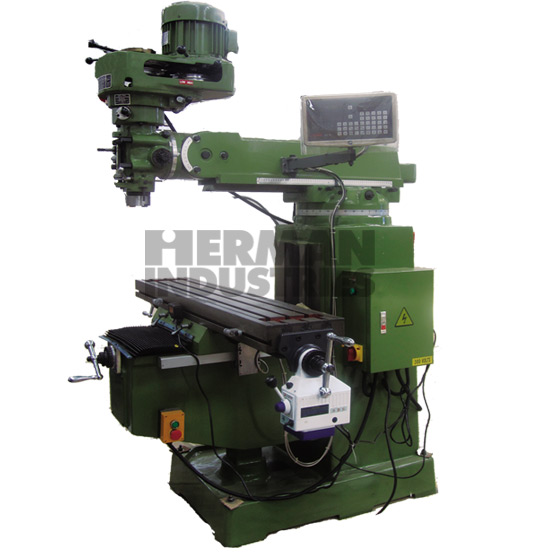

Vertical Turret Milling Machine Technical Specifications:
| SPECIFICATION | UNIT |
|---|---|
| Spindle Taper | ISO40 |
| Spindle Speed (GPM) | 80-5440 (15 steps) |
| Quill Tavel (mm) | 127 |
| Spindle Center to Column Surface (mm) | 190 - 685 |
| Spindle Nose to Worktable Surface (mm) | 0 - 428 |
| Head Tilt | 45° F/B 90° L/R |
| Ram Travel (mm) | 550 |
| Spindle Motor (HP) | 3 |
| Table Size (mm) | 1270x254 |
| Longitudinal Travel (X) (mm) | 800 |
| Cross Travel (Y) (mm) | 400 |
| Vertical Travel (Z) (mm) | 380 |
| X Guidrail | Dovetailed Way |
| Y Guidrail | Dovetailed Way |
| Z Guidrail | Dovetailed Way |
| X Travel | Automatic |
| Weight (kg) | 1300 |
| Dimension (mm) | 1600x1730x2200 |
Spesifikasi:
Features:
- 3 HP Vertical and Horizontal Spindle
- Inverter Variable Speed Turret Head
- X and Y Axes Servo Motor
- X and Y-Axes Ball Screw
- Table Up and Down Rapid Traverse
- Chip Tray
- Slide Way Auto lubrication pump
