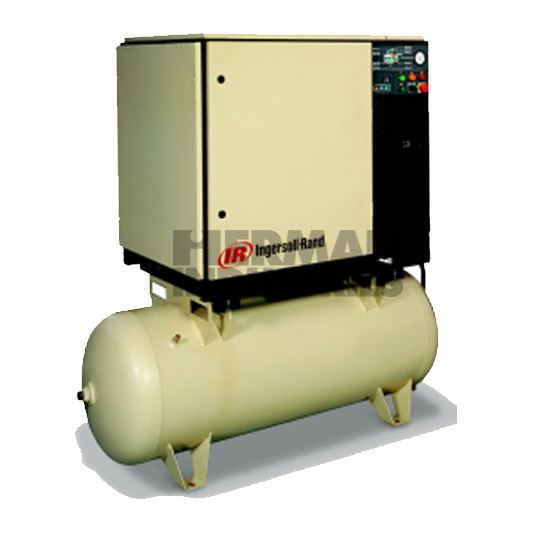

P/N UP5-22-10
Fitur/Keterangan:
Specifications Chart:
|
Model CCN |
Power KW |
Capacity m3/min ft3/min |
Operating bar(g) |
Pressure psi(g) |
Sound dBA |
Voltage V |
Control EC/IC |
||
|
Intellisys controller |
|||||||||
|
UP5-22-10 |
99335945 |
22 |
3.11 |
110 |
10 |
145 |
69 |
380 / 415V |
IC |
Dimensions (inch) and weight (kg):
Length: 51 inch, Width: 36 inch, Height: 41 inch
Weight: 540kg / 1190lbs
Spesifikasi:
Main features:
- Air-cooled design with 40℃ ambient continuous-duty rating
- High efficient operation than yields up to 35% of energy savings, IP55, IEC frame, 380-415V/3ph/50hz TEFC motor
- NEMA4 control box
- Integral star delta starter
- Air Cooled aftercooler
- Self-adjusted Poly-vee belt drive
- Factory-fill of SSR Ultra Coolant
- IC:Intellisys SE controller
- On-Line/Off-line control with automatic start & stop
- Low sound enclosure (68 - 69dBA)
STOCK READY
