P/N D360IN-A
Fitur/Keterangan:
Model |
Capacity m3/min PDP |
Nominal Power (kW) |
Max Op Pressure bar (g) |
Dimensions | Weight |
Std Power Supply V/Ph/Hz |
|||
| 7°C | 3°C | Length(mm) | Width (mm) | Height (mm) | |||||
| D360IN-A | 6.00 | 4.80 | 1.04 | 14 | 679 | 500 | 978 | 87 | 230/1/50 |
Operating limitations:
- Ambient: Min 2 °C, Max 50 °C
- Air inlet temperature: Max 60 °C
Performance based on:
- Ambient Pressure equal to 1 bar g
- Ambient temperature equal to 25 °C
- Dyer inlet air relative humidity 100%
- Dyer inlet pressure equal to 7 bar g
- Dyer inlet temperature equal to 35 °C
Spesifikasi:
Product Descriptions:
- Full feature, multi-function control panel with alarm display
- Hermetically sealed piston refrigerant compressor, high efficient condenser
- Fully adjustable, programmable electronic drain valve to minimize air loss
- Satisfies ISO 7183 industry standards
- Advanced full feature control panel with history of 10 alarms and remote alarm contact
- IP42 electical rating

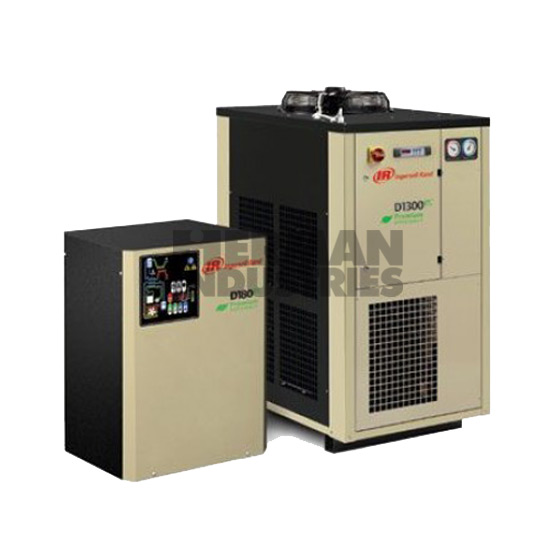

IR Compressor, Small Refrigated Dryers
Kompresor IR (Ingersoll Rand), 230V/50 Hz. Dilengkapi dengan Kondensator efisiensi tinggi. 3 In 1 Low Pressure
STOCK READY
