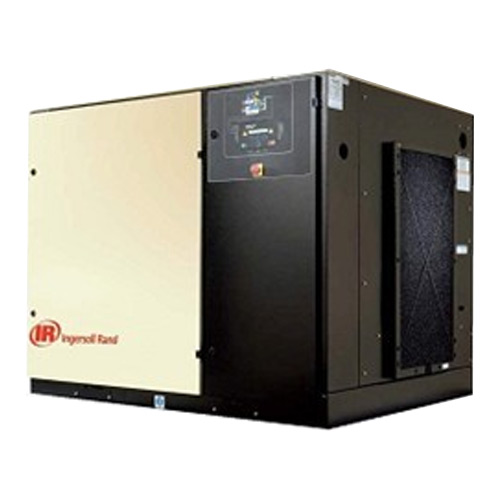

MH 37 Medium Rotary Screw Air Compressor

P/N MH37
MH 37 Medium Rotary Screw Air Compressor
Fitur/Keterangan:

Robust 46°C ambient temperature rating keeps the compressor running in hot equipment rooms and minimises nuisance shut-downs caused by fouled coolers



ModelFrequency (Hz)Rated Pressure (barg / psig)Nominal Power (kW / hp)Flow (m3min / cfm)Length (cm / in)Width (cm / in)Height (cm / in)Weight (kg / lbs)
MH 37 50 10 / 145 37 / 50 5.6 / 198 170 / 67 160 / 63 170 / 67 907 / 2000
Spesifikasi:

High dust inlet air filter extends the life of the machine by helping to keep dirt out of the compressor • Integral gear drive is permanently aligned and requires no adjustments during the course of normal operation

INCLUSIVE PACKAGING

  • 400Volt/3phase/50Hz IP55 motors
  • 400Volt/3phase/50Hz integrated
  • star-delta starter
  • Air-cooled aftercooler discharges air at an 8°C CTD
  • Air-cooled oil cooler
  • Condensate separator and drain trap
  • 72 dB(A) quiet enclosure
