P/N SOL 3500
Fitur/Keterangan:
| Technical Data and Dimensions | ||
| Rated Load Capacity | kg | 3500 |
| Overall Width | mm | 3628 |
| Max. Width Inside Arms | mm | 2325 |
| Overall Height | mm | 3631 |
| Lifting Time | s | 49 |
| Max. Lifting Height | mm | 1930 |
| Pick-up Height with Adjustable Pads | mm | 120-225 |
| Power Supply | 318-415 VAC | 3ph 50/60 Hz |
| 220 VAC | 1ph 50 Hz | |
| 220 VAC | 1ph 60 Hz |
Spesifikasi:

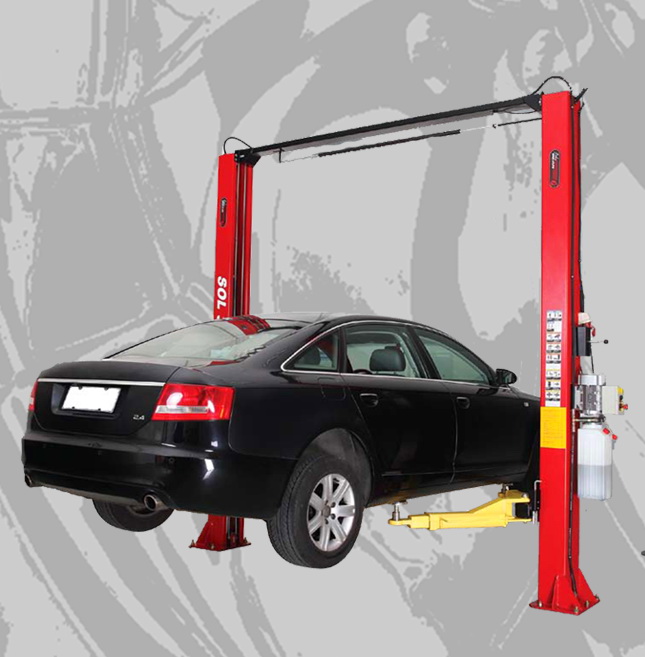

John Bean SOL 3500 Electro-Mechanical Two-Post Lift
Key Features
• Perfect ground clearance – no base frame
• Asymmetric design of posts and supporting arms, easy car door access on both sides
• Special arm and pad configurations to lift a wide range of vehicles without using special accessories
• Automatic arm locks
• Lifting carriage bearing are made of self-lubricating material
• Aluminum housing motor with CE control box
Standard Accessories:
• Adjustable Height Pads (0-115mm)
• Rubber Door Guard
• For cars up to 3500 kg
