Fitur/Keterangan:
| Technical Data and Dimensions | ||
| Tire Diameter | inches (cm) | 19-39 (48.3-99.1) |
| Track Width | inches (cm) | 48-96 (122-244) |
| Wheel Base | inches (cm) | 79-180 (201-244) |
| Shipping Weight | lbs (kg) | 501 (227) |
| Power Requirements | 100-240 V | 1ph 50/60 Hz |
Spesifikasi:

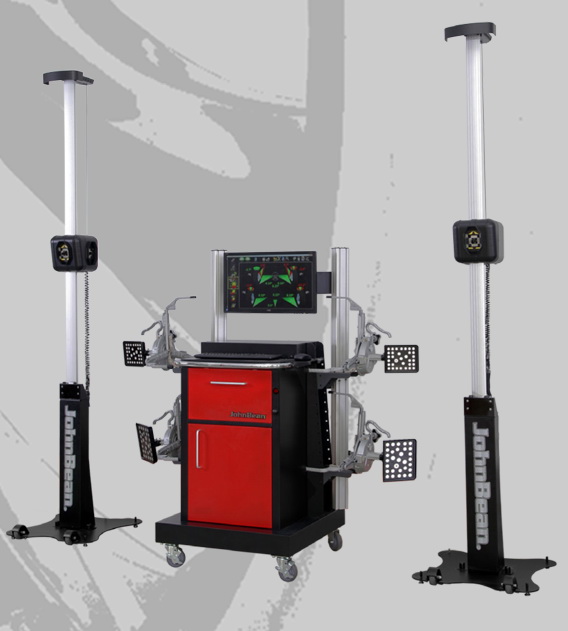

John Bean i-Visualiner Platinum Wheel Aligner
3D Car Wheel Aligner
Key Features
• 2 independent camera towers with self-synchronising cameras, ideally suited for drive-through solutions.
• Ultra high resolution cameras
• Motorized moveable beam (flexible work level 0 - 2 m)
• Mobile cabinet with terminal for printer and compartment for PC plus additional storage space
• 22“ TFT wide-screen monitor (Optional)
• PC with Windows operating system (Optional)
• Color printer (Optional)
• Drive-on camera aid (Optional)
• Pro42 Platinum user software
• Set of 4 AC400 clamps - tire diameter 19" - 39"
• 4 ultra high resolution targets
• 3D reading screen and animation graphics
• Intuitive and productivity-enhancing features for quick and accurate measurement
• Complete and up-to-date OEM specs
• EZ Toe for easy and convenient settings at maximum steering angle
• Cradle adjustment
• Advanced measurement of vehicle dimensions
• Optional TIP (target imaging pointer) for ride height measurement
• ProAckermann™
• OEM Wizards
• Customer database import / export / sharing
• Vehicle Sensitive Alignment (VSA)
• Graphical caster trial, scrub radius and SAI
Standard Accessories:
• TIP (Right Height Target): EAK0256J71A
