P/N EELR513
Fitur/Keterangan:
| Technical Data and Dimensions | ||
| Maximum Capacity | kg (lbs) | 3500 (7716) |
| Lift Design | - | Semi-symmetrical |
| Lifting Mechanism | - | Electro-hydraulic |
| Overall Width | mm (inches) | 3402 (134) |
| Overall Height | mm (inches) | 3705 (146) |
| Width between Columns | mm (inches) | 2752 (108) |
| Maximum Lifting Height | mm (inches) | 1915 (75) |
| Under Bar Clearance | mm (inches) | 3593.5 (141) |
| Drive-thru Width | mm (inches) | 2437 (96) |
| Lifting Time | secs | 49 |
| Power Supply | 380-415 V | 3ph, 50 Hz |
| 200–240 V | 1ph 50/60 Hz |
Spesifikasi:

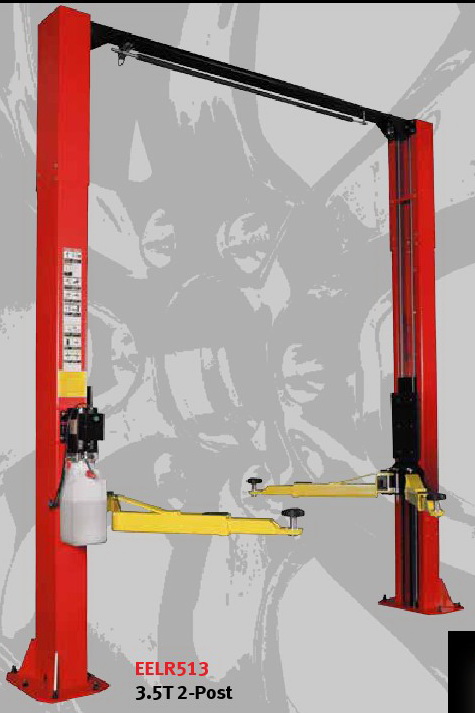

John Bean EELR513 Two-Post Automotive Lift
For car and light trucks up to 3.5T
Key Features
• Large swing arm area designed to cater for various lifting position
• Manufacture using the state-of-the-art technologies and powder coating finish
• Rubber doors guard prevent damages when moving in/ out of the vehicle
• Heavy duty gear arm retraints and hydraulic hose guards designed to be safe and long lasting
• Nylon glide block are used to provide durable smooth lift
• Adjustable screw stackable rubber lifting pad
