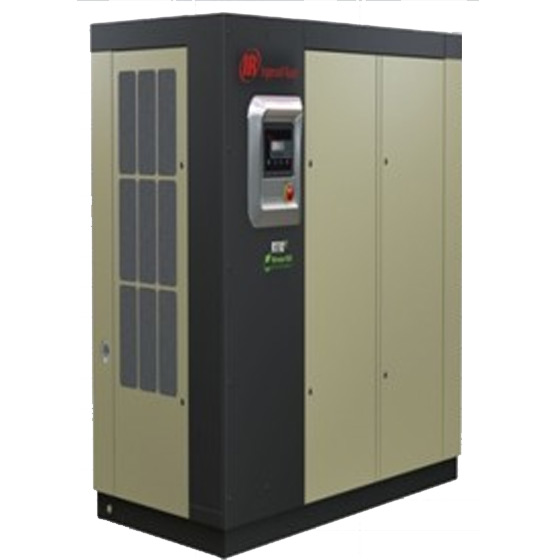

P/N IRMR55N-R75N
Fitur/Keterangan:
ASME(MOM) + IE1 standard Fan & Main Motor main features:
|
MODEL |
CCN |
CAPACITY |
Operating bar(g) |
Pressure psi(g) |
Cooler |
Voltage (V) |
|
| m3/min | ft3/min | ||||||
| R55n | 23899388 | 3.23-10.53 | 114-372 | 70. | 101 | AC | 400V/3PH/50Hz |
| R55n | 23899396 | 3.23-10.11 | 114-357 | 7.5 | 109 | WC | 400V/3PH/50Hz |
| R55n | 23899396 | 3.23-9.88 | 114-349 | 8.0 | 116 | WC | 400V/3PH/50Hz |
| R55n | 23899396 | 3.23-9.29 | 114-328 | 8.5 | 123 | WC | 400V/3PH/50Hz |
| R55n | 23899396 | 3.23-8.49 | 114-300 | 10.0 | 145 | WC | 400V/3PH/50Hz |
| R75n | 23899404 | 3.23-13.56 | 114-479 | 7.0 | 101 | AC | 400V/3PH/50Hz |
| R75n | 23899412 | 3.23-12.94 | 114-457 | 7.5 | 109 | WC | 400V/3PH/50Hz |
| R75n | 23899412 | 3.23-12.66 | 114-447 | 8.0 | 116 | WC | 400V/3PH/50Hz |
| R75n | 23899412 | 3.23-12.15 | 114-429 | 8.5 | 123 | WC | 400V/3PH/50Hz |
| R75n | 23899412 | 3.23-11.50 | 114-406 | 10.0 | 145 | WC | 400V/3PH/50Hz |
Dimensions (mm):
- 2332L x 1265W x 2032H
Max Weight (kg):
- Weight 1,420 Kg (R75n Air cooled)
Spesifikasi:
Main features:
- Premium efficiency IP23 HPM motor
- 95.2% constant efficiency rating
- No motor bearings
- Rugged IR airend with duplex tapered roller bearings
- Air or Water-Cooled aftercooler with moisture separator
- 400V/3Ph/50Hz integral variable frequency drive
- Variable speed controlled fan motor
- Factory-fill of SSR UltraCoolant
- Xe microprocessor controller providing:
- Integrated with Line Reactor inside
- 30 Languages available & selectable via the controller
- (English, Chinese, Korean, Thai & Berhasa Indonesia)
- 69+3 dB(A) low sound enclosure (per IS0 2151; 2004)
