Fitur/Keterangan:
Specifications Chart:
|

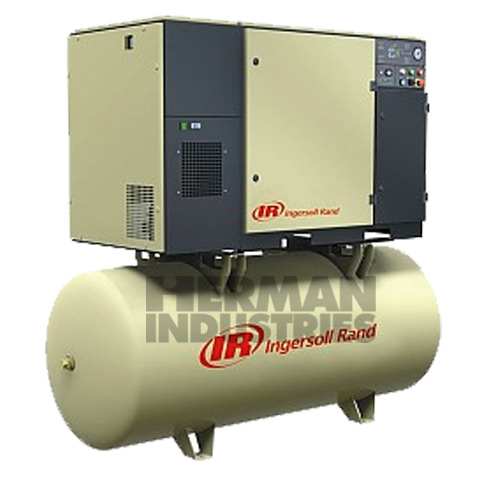

Model CCN |
Power KW |
Capacity m3/min ft3/min |
Operating bar(g) |
Pressure psi(g) |
Sound dBA |
Voltage V |
Control EC/IC |
||
|
Electropneumatic |
|
|
|
|
|
|
|
||
|
UP5-15-7 |
80049729 |
15 |
2.41 |
85 |
7.5 |
109 |
68 |
380 / 415V |
EC |
|
UP5-15-8 |
80049737 |
15 |
2.36 |
83 |
8.5 |
123 |
68 |
380 / 415V |
EC |
|
UP5-15-10 |
80049745 |
15 |
2.07 |
73 |
10 |
145 |
68 |
380 / 415V |
EC |
|
UP5-15-14 |
80049752 |
15 |
1.61 |
57 |
14 |
202 |
68 |
380 / 415V |
EC |
|
UP5-18-7 |
80049760 |
18 |
3 |
106 |
7.5 |
109 |
68 |
380 / 415V |
EC |
|
UP5-18-8 |
80049778 |
18 |
2.85 |
101 |
8.5 |
123 |
68 |
380 / 415V |
EC |
|
UP5-18-10 |
80049786 |
18 |
2.61 |
92 |
10 |
145 |
68 |
380 / 415V |
EC |
|
UP5-18-14 |
80049794 |
18 |
2.01 |
71 |
14 |
202 |
68 |
380 / 415V |
EC |
|
UP5-22-7 |
80049802 |
22 |
3.54 |
125 |
7.5 |
109 |
69 |
380 / 415V |
EC |
|
Intellisys controller |
|||||||||
|
UP5-15-7 |
99335879 |
15 |
2.41 |
85 |
7.5 |
109 |
68 |
380 / 415V |
IC |
|
UP5-15-8 |
18981746 |
15 |
2.36 |
83 |
8.5 |
123 |
68 |
380 / 415V |
IC |
|
UP5-15-10 |
99335887 |
15 |
2.07 |
73 |
10 |
145 |
68 |
380 / 415V |
IC |
|
UP5-15-14 |
99335895 |
15 |
1.61 |
57 |
14 |
202 |
68 |
380 / 415V |
IC |
|
UP5-18-7 |
99335903 |
18 |
3 |
106 |
7.5 |
109 |
68 |
380 / 415V |
IC |
|
UP5-18-8 |
18981753 |
18 |
2.85 |
101 |
8.5 |
123 |
68 |
380 / 415V |
IC |
|
UP5-18-10 |
99335911 |
18 |
2.61 |
92 |
10 |
145 |
68 |
380 / 415V |
IC |
|
UP5-18-14 |
99335929 |
18 |
2.01 |
71 |
14 |
202 |
68 |
380 / 415V |
IC |
|
UP5-22-7 |
99335937 |
22 |
3.54 |
125 |
7.5 |
109 |
69 |
380 / 415V |
IC |
Dimensions (mm) and weight (kg):
15kw: 1282L×920W×1050H, 509kg
18.5kw: 1282L×920W×1050H, 532kg
22kw: 1282L×920W×1050H, 540kg
Spesifikasi:
Main features:
- Air-cooled design with 40℃ ambient continuous-duty rating
- High efficiency IP55, IEC frame, 380-415V/3ph/50hz TEFC motor
- NEMA4 control box
- Integral star delta starter
- Air Cooled aftercooler
- Self-adjusted Poly-vee belt drive
- Factory-fill of SSR Ultra Coolant
- IC:Intellisys SE controller
- On-Line/Off-line control with automatic start & stop
- Low sound enclosure (68 - 69dBA)
SOLD OUT
