P/N IRN37K-45KCC
Fitur/Keterangan:
Specifications Chart:
|
MODEL |
CCN |
CAPACITY |
Operating bar(g) |
Pressure psi(g) |
Cooler |
Voltage (V) |
CONTROL (SG/SE) |
|
| m3/min | ft3/min | |||||||
|
IRN37K-CC |
19040484 |
1.8-6.6 |
64-233 |
7.0 |
101 |
A/C |
400V/3Ph/50Hz |
SGN |
|
|
19040500 |
1.8-6.4 |
64-226 |
7.5 |
109 |
W/C |
|
|
|
|
|
1.8-6.3 |
64-222 |
8.0 |
116 |
|
|
|
|
|
|
1.9-6.2 |
67-219 |
8.5 |
123 |
|
|
|
|
|
|
1.9-5.7 |
67-201 |
10.0 |
145 |
|
|
|
|
IRN45K-CC |
19040492 |
1.9-7.4 |
67-261 |
7.0 |
101 |
A/C |
400V/3Ph/50Hz |
SGN |
|
|
19040518 |
1.9-7.4 |
67-261 |
7.5 |
109 |
W/C |
|
|
|
|
|
1.9-7.2 |
67-254 |
8.0 |
116 |
|
|
|
|
|
|
1.9-7.1 |
67-251 |
8.5 |
123 |
|
|
|
|
|
|
1.9-6.5 |
67-230 |
10.0 |
145 |
|
|
|
Dimensions (mm) and Weight (Kg):
- Dimensions (mm): 1345 L x 1579 W x 1777 H (37-45 kw)
- Weight (kg): 1048 (37-45 kw)
Spesifikasi:
Compressor options (separately available):
- Power Outage Restart (PORO)
- Remote Pressure Transducer Panel Filter
- High Dust Filter n/a
- Outdoor Modification
Main features:
- Premium efficiency IP23 HPM motor
- 95.8% constant efficiency rating
- No motor bearings
- Rugged IR airend with duplex tapered roller bearings
- Air or Water-Cooled aftercooler with moisture separator
- 400V/3Ph/50Hz integral variable frequency drive
- Factory-fill of SSR UltraCoolant
- IntellisysTM controller featuring:
- Infinite on-off control
- Self auditing function
- Sound level: Air-cooled 75 db(A) Water-cooled 68 db(A)

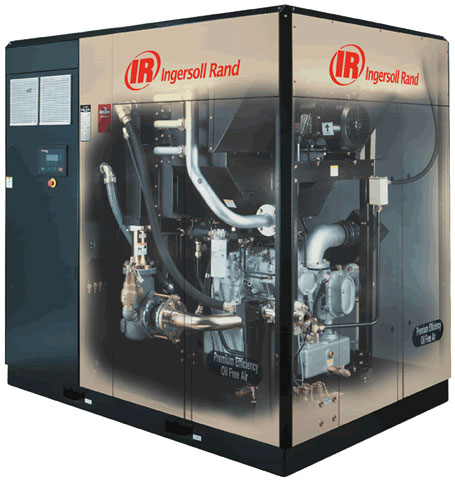

IR Compressor, Nirvana High Dust Filter and Variable Frequency Drive Air Compressor
Kompresor IR Air or Water Cooled dengan tingkat efisiensi konstan 95.8%
