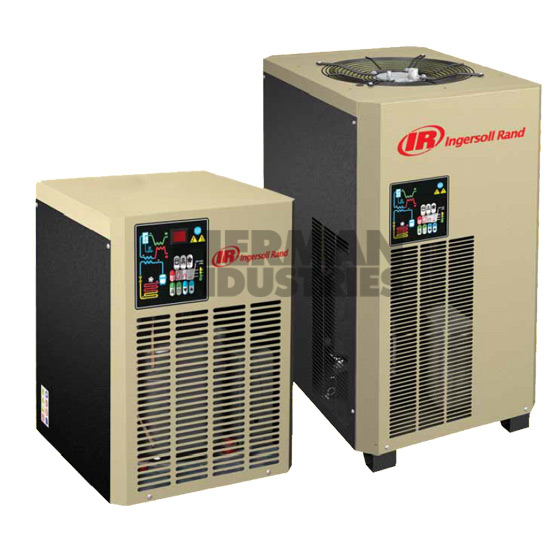

Ingersoll Rand High Pressure Small Refrigated Dryers D54IN-HP to D480IN-HP

P/N IRSD54-D480INHP
Ingersoll Rand High Pressure Small Refrigated Dryers D54IN-HP to D480IN-HP
Fitur/Keterangan:

Specifications Chart:


Model

Capacity m3/min

PDP

Nominal

Power (kW)

Max Op

Pressure bar (g)

 Dimensions  Weight

Std Power

Supply V/Ph/Hz
7°C 3°C Length(mm) Width (mm) Height (mm)
D54IN-HP 0.90 0.72 0.16 40 420 515 565 26 230/1/50
D72IN-HP 1.20 0.96 0.21 40 420 515 565 26 230/1/50
D108IN-HP 1.80 1.44 0.47 40 420 515 565 33 230/1/50
D144IN-HP 2.40 1.92 0.47 40 420 515 565 34 230/1/50
D180IN-HP 3.00 2.40 0.61 40 420 515 565 43 230/1/50
D270IN-HP 4.50 3.20 0.90 40 500 680 980 85 230/1/50
D480IN-HP 8.00 6.40 1.24 40 500 680 980 110 230/1/50
D660IN-HP 11.00 10.00 1.24 40 500 680 980 120 230/1/50


Performance based on:

  • Ambient Pressure equal to 1 bar g
  • Ambient temperature equal to 25 °C
  • Dyer inlet air relative humidity 100%
  • Dyer inlet pressure equal to 40 bar g
  • Dyer inlet temperature equal to 35 °C

Operating limitations:

  • Ambient: Min 2 °C, Max 45 °C
  • Pressure: Min 5 bar, Max 40 bar
  • Air inlet temperature Max 45 °C
Spesifikasi:
  • Air cooled R134a, 3 in 1 low pressure drop aluminium heat exchanger
  • Hermetically sealed piston refrigerant compressor, high efficiency condenser
  • Variable speed fan, controlled by dryer controller
  • Electronic drain as standard
  • Advanced full feature control panel with history of 10 alarms and remote alarm contact
  • IP42 electrical rating


IR Compressor, High Pressure Small Refrigated Dryers
Kompresor IR Air Cooled 3 in 1 low pressure 230V/50 Hz. Dilengkapi dengan dryer controller untuk mengatur putaran kipas, remote alarm dan full feature control panel history
