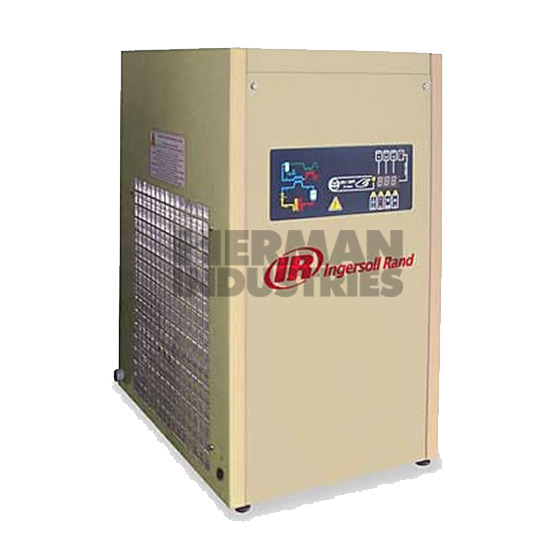

Ingersoll Rand High Inlet Temperature Refrigated Dryers D12IT-A to D170I-A 50Hz

P/N IRD12-170ITA
Ingersoll Rand High Inlet Temperature Refrigated Dryers D12IT-A to D170I-A 50Hz
Fitur/Keterangan:

Specifications Chart:


Model

Capacity m3/min

PDP

Nominal

Power (kW)

Max Op

Pressure bar (g)

 Dimensions  Weight

Std Power

Supply V/Ph/Hz
7°C 3°C Length(mm) Width (mm) Height (mm)
D25IT-A 0.47 0.42 0.16 14  500 386 651 38 230/1/50
D42IT-A 0.79 0.70 0.27 14 500 386 651 39 230/1/50
D60IT-A 1.13 1.00 0.41 14 500 386 651 39 230/1/50
D102IT-A 1.92 1.70 0.41 14 567 420 771 57 230/1/50
D140IT-A 2.64 2.33 0.47 14 567 420 771 62 230/1/50
D170IT-A 3.20 2.83 0.61 14 567 420 771 67 230/1/50


Performance based on:

  • Ambient Pressure equal to 1 bar g
  • Ambient temperature equal to 25 °C
  • Dyer inlet air relative humidity 100%
  • Dyer inlet pressure equal to 7 bar g
  • Dyer inlet temperature equal to 66 °C

Operating limitations:

  • Ambient: Min 2 °C, Max 50 °C
  • Air inlet temperature Max 93 °C
Spesifikasi:
  • Air cooled R134a, 3 in 1 low pressure drop aluminium heat exchanger
  • Integrated general purpose filter removing air particle up to 1 micron
  • Integrated aftercooler to handle inlet temperature up to 90 °C
  • Electronic drain as standard
  • Advanced full feature control panel with history of 10 alarms
  • IP42 electrical rating



IR Compressor, High Inlet Temperature Refrigated Dryer
Kompresor IR dengan temperatur inlet hingga 90 °C. Dilengkapi dengan full feature control panel history hingga 10 alarm kebelakang
