P/N IR2SP2KW
Fitur/Keterangan:

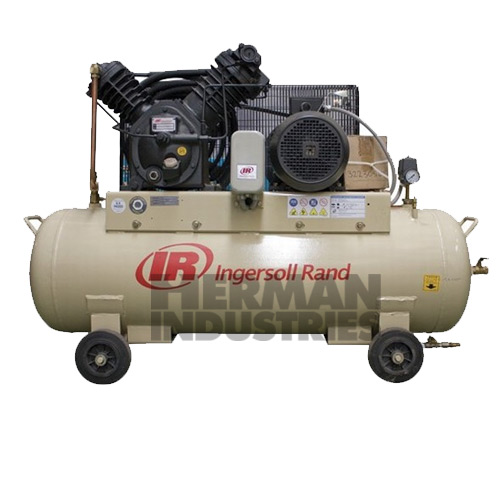

Horizontal Tank Mounted
| Model | CCN | Power (kW) | Capacity | Operating bar(g) | Pressure psi(g) | Motor | Dimensions (mm) LxWxH | Weight (kg) | Air Tank (litre) | |
| m3/min | f3/min | |||||||||
| 7100D15/12-FF | 15836836 | 11.2 | 1.3 | 46.7 | 12.3 | 175 | 380-415v/3ph/50hz | 1,890x880x1,325 | 583 | 303 |
| 3000E20/12-FF | 15836885 | 14.9 | 1.89 | 66.7 | 12.3 | 175 | 380-415v/3ph/50hz | 1,900x1,100x1,540 | 750 | 445 |
| 3000E25/12-FF | 15837115 | 18.5 | 2.4 | 84.5 | 12.3 | 175 | 380-415v/3ph/50hz | 1,900x1,100x1,540 | 780 | 445 |
| 3000E30/12-FF | 15836950 | 22.4 | 2.69 | 94.9 | 12.3 | 175 | 380-415v/3ph/50hz | 1,900x1,100x1,540 | 800 | 445 |
Spesifikasi:
Main Features:
- Heavy duty cast iron pump
- Premium quality
- Powder coat painting enhances antirust
- Greater realiability
- Efficient cooling system
- Long term durability
- Regulation: Auto Stop/Start, 2340 thru 2545. Constant speed 7100 thru 3000 series
- Centrifugal unloader on 2545, 7100, 3000 & H15T
- Star-Delta starter on 2545C10/12 SD, Premiere Package and Standard Package with motor Horse Power above 20HP (includes 20HP)
- Receiver ASME - 220 PSIG (15.2 kg/cm2) max. Operation temperature 250°C
- Tank mounted model, starter mounted on machine
- Baseplate mounted model, DOL starter mounted on machine, SDS starter shipping loose with machine
What do you get from a Premiere Package?
- Full time low oil level protection switch
- Efficient electric motor (TEFC IP54 protection, Class Finsulation (Three phase)
- High reliable magnetic Starter (Star Delta (15hp - 30hp)
- Aircooled after-cooler
- Time proven parts & components
- Totally enclosed sheetmetal beltquard
- ASME coded air receiver with 3rd party certification
SOLD OUT
