P/N LKTC510-TC1200
Fitur/Keterangan:

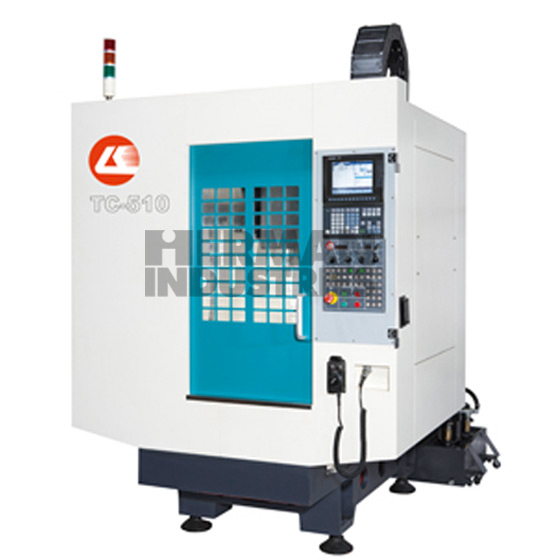

TC Series Tapping Center Product Specifications:
| TC Series | TC-510 | TC-710 | TC-1200 |
|---|---|---|---|
| X-axis Travel | 510 | 710 | 1200 |
| Y-axis Travel | 420 | 420 | 410 |
| Z-axis Travel | 350 | 350 | 420 |
| Distance from spindle center to table surface (mm) | 180-530 | 180-530 | 200-620 |
| Table dimension (mm) | 650 x 420 | 850 x 420 | 410 x 1350 |
| Max. table load (kgs) | 250 | 250 | 300 (Each side) |
| Rapid traverse (m/min) | 48/48/48 | 48/48/48 | 48/48/48 |
| Cutting feedrate (m/min) | 1-10 | 1-10 | 1-10 |
| Spindle speed (rpm) | 12000 (M / S) | 12000 (M / S) | 10000 (M / S / F) |
| Spindle nose | BT-30 | BT-30 | BT-30 |
| Spindle motor (kw) | 3.7/5.5 | 3.7/5.5 | 5.5/7.5 |
| Tool changer | 14 (Turret type) | 14 (Turret type) | 20 (Arm type) |
| Machine dimension (mm) | 2416 x 1686 x 2432 | 2416 x 2136 x 2432 | 2890 x 2671 x 2430 |
| Machine weight (kgs) | 2750 | 2800 | 5680 |
The Combination of Efficiency and Reliability L.K. High Speed Tapping Center Series
Spesifikasi:
Features:
- Ultra compact High Speed CNC Tapping Center
- Over 6000 sets filed tested in world's largest mobile phone brands
- A Tapping Center known for Best value for price
- Taiwan's largest export market share for Tapping Center
