P/N CH4060
Fitur/Keterangan:

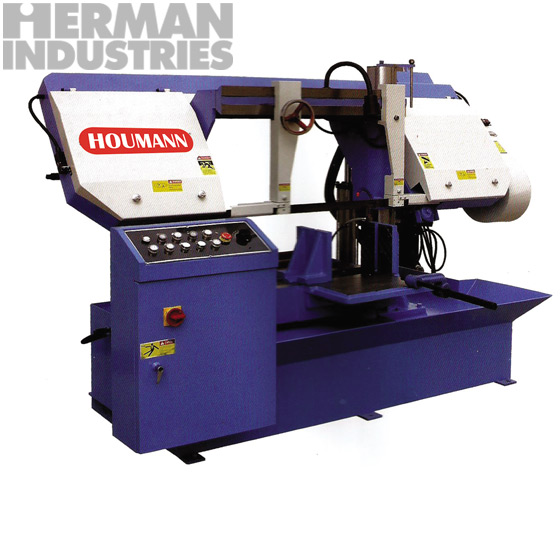

Houmann CH4060 Specifications:
| MODEL | UNIT | |||||||
|---|---|---|---|---|---|---|---|---|
| Tablet Height (mm) | 620 | |||||||
| Max.cutting capacity |
Round (mm) | 400 | ||||||
| Quadrate (HxW) (mm) | 400H × 600W | |||||||
| Saw blade | Speed (m/min) | 26/38/52/70/90 | ||||||
| Size (mm) | 41×1.25×4870 | |||||||
| Guides | Carbide and bearing blade guides | |||||||
| Cleaning | Wire brush & flood coolant | |||||||
| Tension | Manual | |||||||
| Motor output | Blade (kW) | 3.0 (6P) | ||||||
| Hydraulic (kW) | 1.1 | |||||||
| Coolant (kW) | 0.06 | |||||||
| Main Drive | Wormwheel Drive | |||||||
| Work Feeding | Manual | |||||||
| Work Vice | Hydraulic | |||||||
| Machine Weight (kg) | 1250 | |||||||
| Machine Size(L×W×H) (mm) | 2430×1100×1730 |
|||||||
Spesifikasi:
Standard Equipment:
- Blade cleaning brush.
- Working light
- Saw frame height selector gauge
- Out feed with auxiliary plate table
- One piece of bi-metal saw blade.
- One set of tools with tool box
- Roller table 1M long
