P/N RD2170
Fitur/Keterangan:

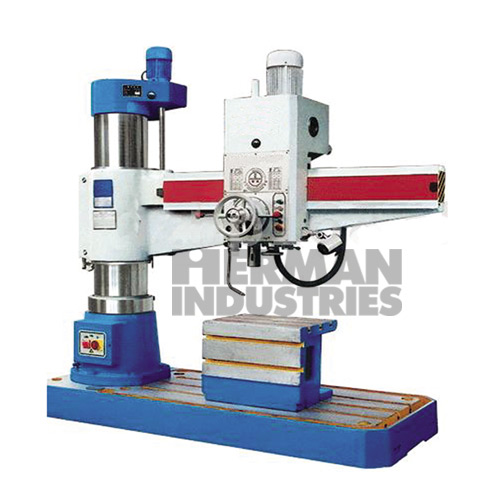

Houmann RD2170 Radial Drilling
| SPECIFICATION | UNIT |
|---|---|
| Drilling Capacity (mm) | 50 |
| Distance FM Spindle to Column (mm) | 360-1600 |
| Axis to Column (mm) | 1250 |
| Spindle Taper | MTS-5 |
| Spindle Travel (mm) | 220 |
| Spindle Speed Range (rpm) | 78, 135, 240, 350, 590, 1100 |
| Spindle Feeds | 1.10, 0.16, 0.22, 0.25, 0.35, 0.56 |
| Swivel Angle of Head Stock | 360 |
| Spindle Motor Power (kW) | 4 |
| Cross Travel Power (kW) | 1.5 |
| Overall Dimension (mm) | 2170 x 850 x 2600 |
| Weight (kg) | 3200 |
Spesifikasi:
Standard Accessories:
- Box shape worktable
- Taper sleeve
- Tool releasing Wrench
- Drift
- Eyelet bolts
