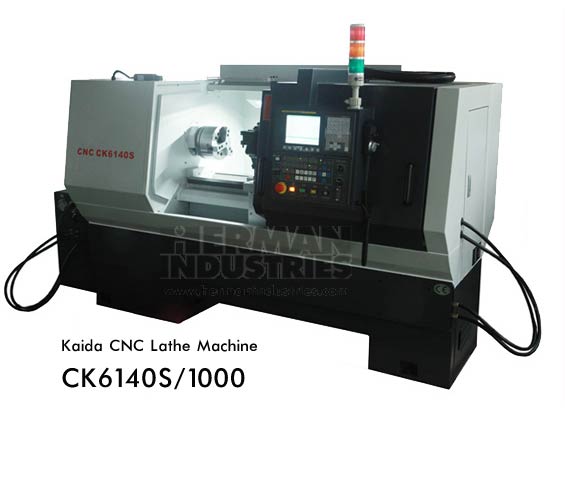

P/N CK6140S/1000
Fitur/Keterangan:
The CNC Lathe adopts ISO International Code.
Product specifications:
| ITEMS | CK6140S |
| Max. swing over bed | 410mm(16") |
| Max. swing over slide | 225/Ø150mm (Gang tools) |
| Max. turned length | 500/750/1000mm |
| Max. turning length | 450/700/950 mm |
| Spindle nose | C6 |
| Spindle bore | 52mm |
| Cone hole diameter and taper of spindle hole | MT.No.6 |
| Steps of spindle speed(Manual) | Variable |
| Range of spindle speed | 200~2800r/min |
| Rapid feed for Axis Z | 10m/min |
| Rapid feed for Axis X | 8 m/min |
| Max. travel of Axis Z | 460mm(18") |
| Max. travel of Axis X | 180/270mm (Gang tools) |
| Min. input | 0.001mm |
| Tool post stations | 4-ways or 6-ways or gang tools |
| Tool cross section | 20×20 mm |
| External diameter | 60mm |
| Taper of bore | MT.No.4 |
| Max. Traverse | 120 mm |
| X/Z motor torque | 3.6/4.7Nm |
| Power of main motor | 3.7KW(special order 505KW) |
| Power of cooling pump | 75W |
| Overall dimensions(L×W×H) | (1870,2120,2370)×1200×1415mm |
| Net weight | 1600,1800,2000㎏ |
Spesifikasi:
CNC's Main Features
1. CNC Lathe controlled by a microcomputer and driven by step motors
2. Equipped with power cut-off protection with diagnostic automation by RS232 interface
3. Longitudinal and cross feeds are effected by ball leadscrews.
4. Either vertical or horizontal 4-station or 6-station tool post or gang tools can be selected.
5. The post is located on precision contrite gears with a high repeated positioning accuracy.
6. Both chuck and tailstock are supplied with hydraulic or manual type.
